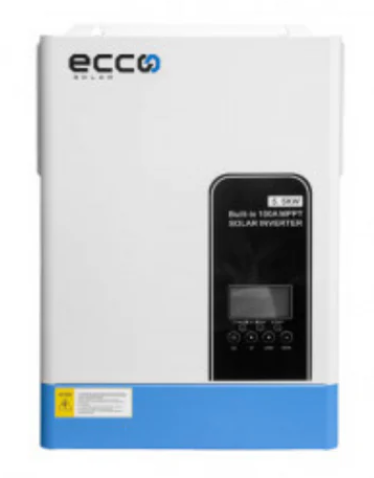

Ecco 5.5KVA 5500W Hybrid Inverter 48V MPPT 100A – Pure Sine Wave (Parallel Version)

The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

Description:

High-Performance Hybrid Inverter for Solar & Backup Power

The Ecco 5.5KVA 5500W Hybrid Inverter is a versatile and high-efficiency power solution designed for residential and commercial applications. With pure sine wave output, MPPT solar charging, and parallel capability, this inverter delivers reliable and optimized energy management for solar and battery-based systems.

Key Features & Benefits

• 5500W hybrid inverter with pure sine wave technology for stable and clean power.
• Built-in 100A MPPT charge controller, maximizing solar energy efficiency.
• Wide MPPT voltage range (120VDC - 450VDC) for better solar input optimization.
• Supports battery and non-battery operation, providing flexibility in setup.
• Parallel-ready, allowing multiple units to be connected for higher power capacity.
• High voltage DC input up to 500V, making it compatible with high-power solar arrays.
• Wi-Fi remote monitoring (optional) for real-time system tracking.
• Multiple output priority settings (UTL, SOL, SBU, SUB) for customized power management.
• Lithium battery activation and RS485 BMS communication for seamless battery integration.
• Detachable dust cover, enhancing durability in harsh environments.

Technical Specifications

Inverter Mode

• Rated Power: 5500VA / 5500W
• DC Input: 48VDC, 100A
• AC Output: 230VAC, 50/60Hz, 60A

AC Charger Mode

• AC Input: 230VAC, 50/60Hz, 60A
• DC Output: 54VDC
• Max. AC Charge Current: 60A (Default: 30A)
• Max. PV+AC Charge Current: 100A
• AC Output: 230VAC, 50/60Hz, 23.9A

Solar Charge Mode

• Max. PV Array Power: 5500W
• Min. Solar Voltage: 120VDC
• MPPT Voltage Range: 120VDC - 450VDC
• Max. Solar Voltage (VOC): 500VDC
• Max. MPPT Charge Current: 100A
• Max. Solar Input Current: 18A

Physical & Dimensions

• Size: 438 x 295 x 105mm
• Weight: 9kg
• Mounting: Wall-mount compatible

Additional Features

• Compatible with Ecco Batteries & Solar Panels for enhanced performance.
• Wi-Fi dongle available for remote monitoring: Add Wi-Fi Dongle

Ideal Applications

• Residential and commercial solar installations.
• Load shedding protection for uninterrupted power supply.
• Off-grid and hybrid solar energy systems.
• Battery backup solutions for homes and businesses.
