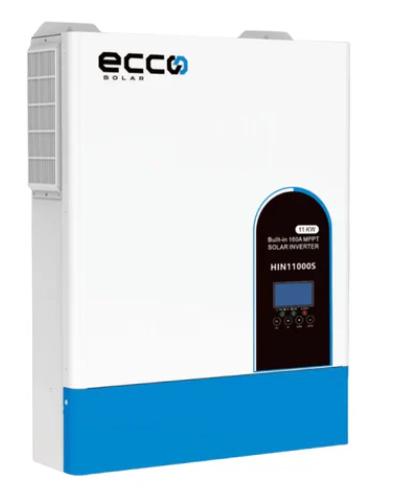

11KVA / 11000W Ecco MPPT Hybrid Inverter Pure Sine Wave

The 11KVA / 11000W Ecco MPPT Hybrid Inverter offers a reliable, high-performance energy solution with pure sine wave output and built-in 2 MPPT for efficient solar energy management. Featuring lithium battery activation via PV or utility, it supports LiFePO4 batteries and offers advanced power features including a 94% peak efficiency rate, overload protection, and remote Wi-Fi monitoring. Designed for both residential and commercial use, this inverter is perfect for off-grid and backup power applications, with a wide voltage range, quick transfer times, and robust durability for harsh environments.

• Built-in 2 MPPT
• Lithium Battery Activation Function: Activated by PV or Utility
• Compatible with LiFePO4 Battery via RS485 communication
• Pure Sine Wave Output
• Power Factor: 1.0
• Maximum PV Input: 500Vdc
• Built-in MPPT: 160A
• Capable of Working Without Battery
• Detachable Dust Cover: Designed for harsh environments
• Optional Wi-Fi Remote Monitoring
• Supports Multiple Output Priorities: SUB, SBU, SUF
• EQ Function: Optimizes battery performance and extends lifecycle

Specifications:

• Model: HIN11000S
• Capacity: 11KVA / 11KW
• Maximum PV Input Power: 11KW
• Parallel Capability: Not available
• Lithium Battery Activation: Yes (by PV or Utility)
• Lithium Battery Communication: Yes (RS485)

Input:

• Nominal Voltage: 230VAC
• Acceptable Voltage Range:
  • 170-280VAC (For Personal Computer)
  • 90-280VAC (For Home Appliances)
• Frequency: 50/60 Hz (Auto Sensing)

Output:

• Nominal Voltage: 220/230/240VAC
• Surge Power: 2200VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time:
  • 10ms (For Computers)
  • 20ms (For Home Appliances)
• Peak Efficiency: 94%
• Overload Protection: 5s @ 140% load

Battery:

• Battery Voltage: 48V
• Maximum Discharge Current: 220A
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC
• Charging Method: CC/CV

Solar Charger & AC Charger:

• Solar Charger Type: MPPT
• Max. PV Array Power: 5500W * 2
• Max. PV Array Open Circuit Voltage: 500VDC
• PV Array MPPT Voltage Range: 60VDC - 500VDC
• Max. Solar Input Current: 18A * 2
• Max. Solar Charge Current: 160A
• Max. AC Charge Current: 120A
• Max. Charge Current: 160A

Physical:

• Dimensions (D x W x H): 540mm x 415mm x 122mm
• Net Weight: 15kg
• Communication Interface: RS232 / RS485 / Dry Contact
• LCD: Available
